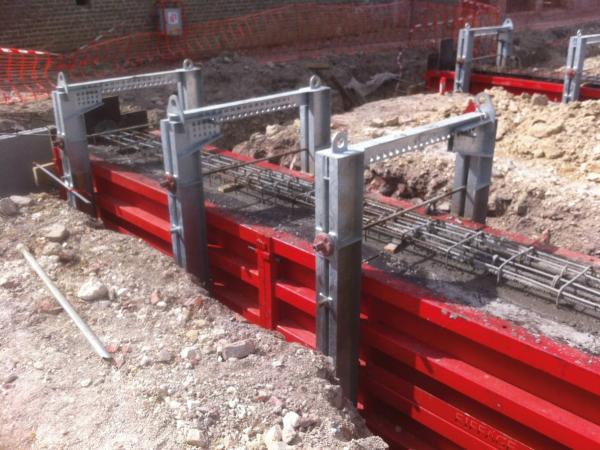

MPX - formwork for grade beams

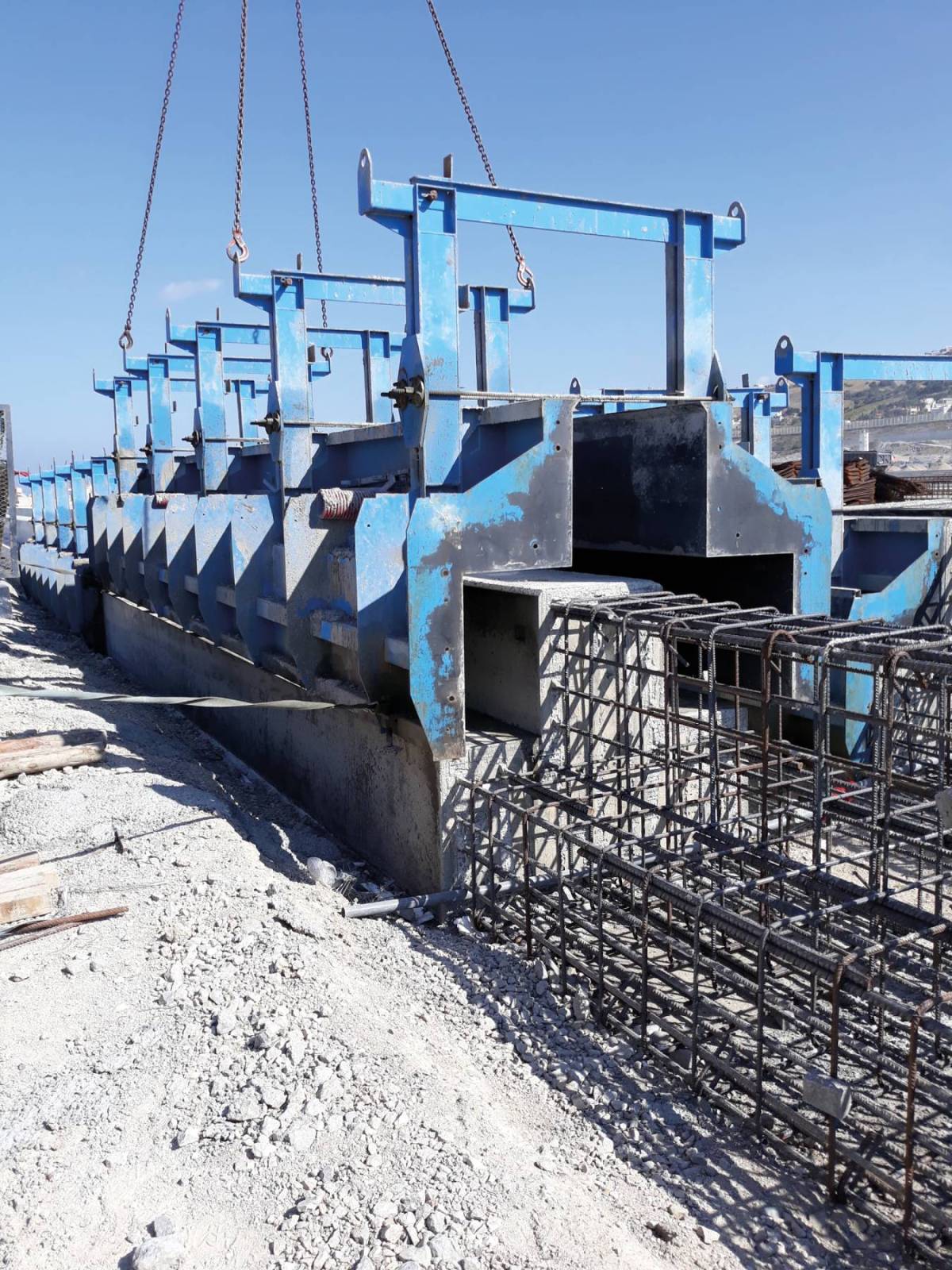

MPX used for gantry crane rail foundations
14000m of foundation beams for a new 52ha container terminal in Tangiers
Specifications:
- Inverse T-section 1850mm x 1550mm
- 2 sets of 20m + 3 stop-ends
- Daily production of 40m’ beam
- Each set has 2 x 10m forms and 10 MPX clamps
MPX system:
- 1 fixed and 1 articulating side
- No ties through the concrete
- Easy alignment with foot spindles
- Automatic demoulding when lifted
- Very short turnaround time
