Flood barrier formwork

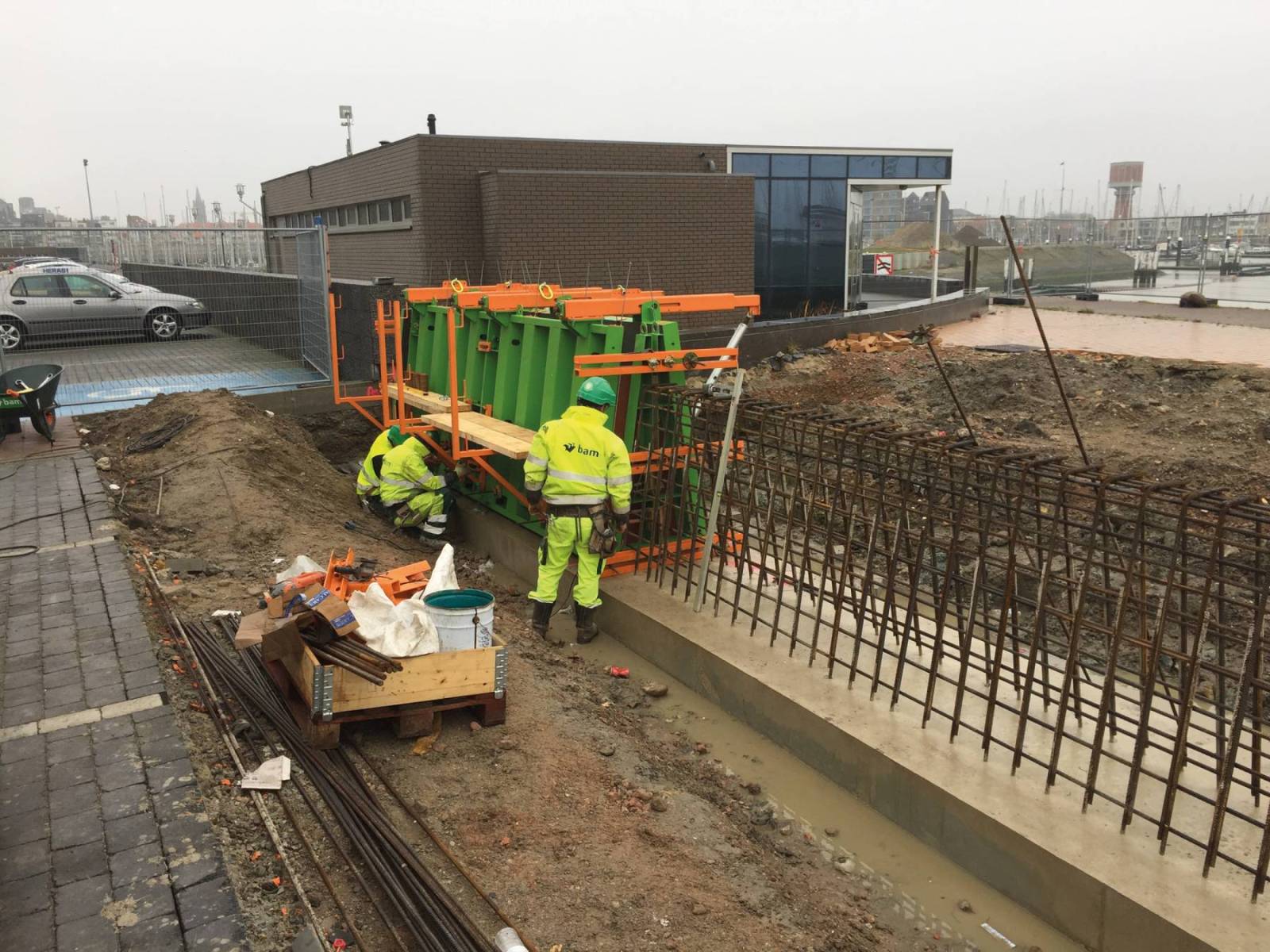

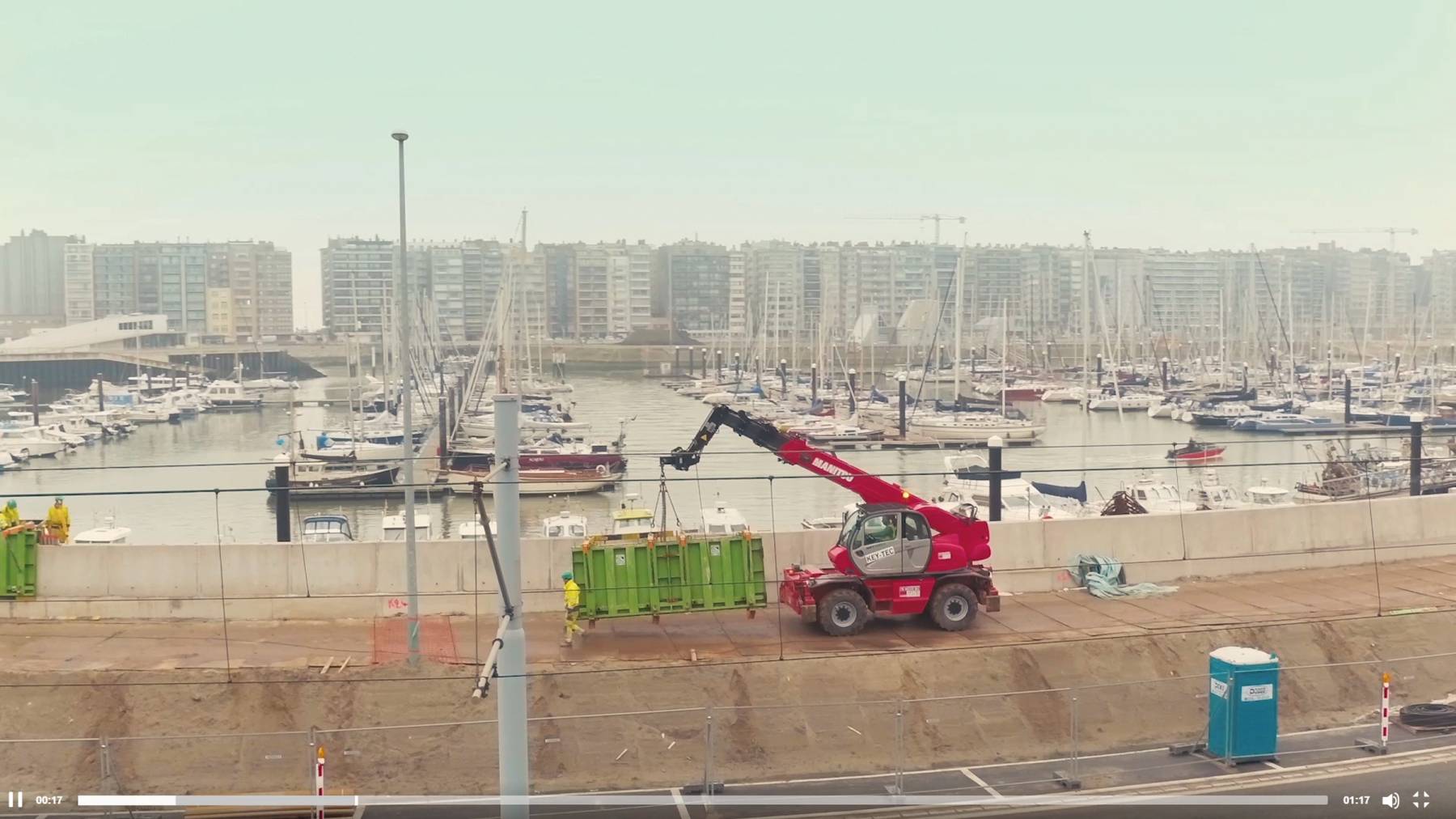

Adjustable formwork for a 1000m long curved marina flood barrier wall in Blankenbergh.

Specifications:

1600mm high wall
15% slanted on 1 or 2 sides
18m of formwork
- 2 sections of 9m long
- 4 parts of 2250mm per section
- Infill parts to make curves
Cantilevers over the top
- Adjusting slant
- Securing both sides
Only 1 tie bar through the concrete
Integrated rubber sealant at the base
Stop-ends with integrated joint
