Tricon steel panel Precast Moulds formwork
The Tricon formwork is a robust and versatile shuttering system for all types of concrete works developed and produced by Construx.

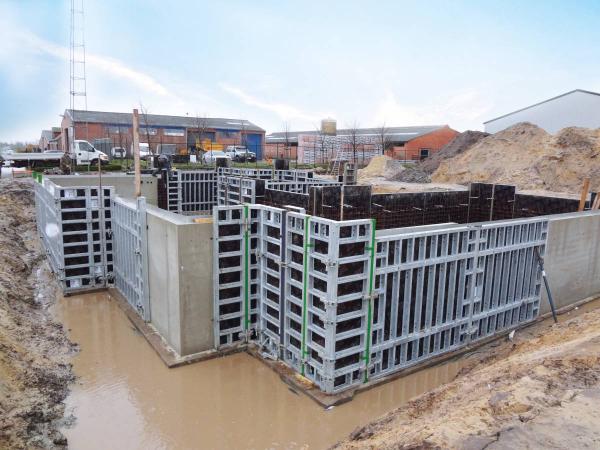

This shuttering system belongs to the category of heavy duty modular panel systems, and is suitable to be used on every site where concrete walls, columns or beams need to be realized in a cost-effective way.
With respect to the robustness and high resistance of 80kN/m², the weight of the panels is still limited, making the panels easy to handle with a crane. Through total quality management in design, production and logistics, Construx guarantees a constant high quality.
Application of the Construx Tricon system:
- Galvanized and powder coated steel frame
- 18mm plywood with a 220g/m² phenol coating
- Plywood screwed from behind
- Profiled sides

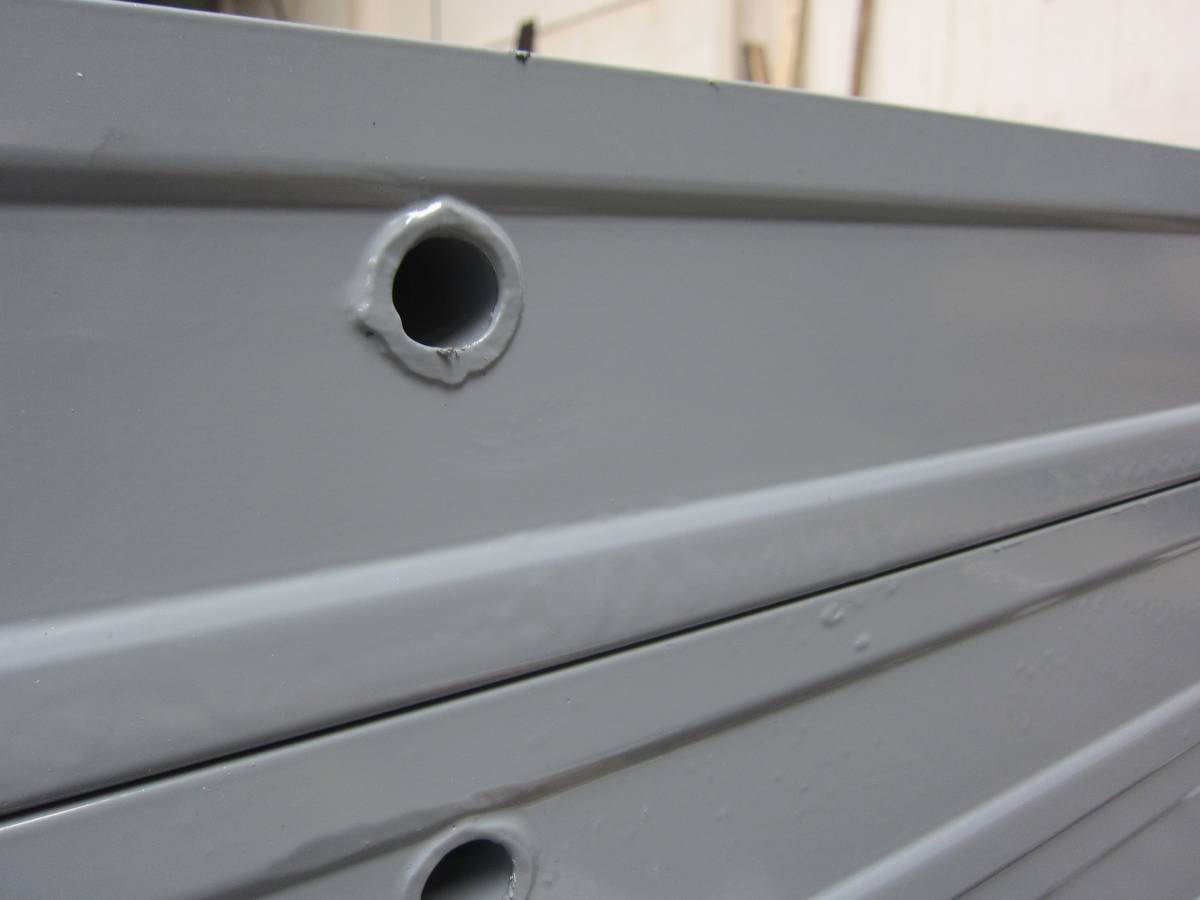

- Steel conical tie holes
The Construx Tricon system meets the following requirements:
- Rigid and solid
- Easy and ergonomic
- Designed and calculated according to applicable standards
- In-house production, controlled and certified
Specifications of the Construx Tricon System:
- Modular steel panel formwork
- Panel thickness 120mm
- Panels with large surface
- Limited number of accessories
- High pressure resistance 80kN/m²
- Long life expectancy
A. Robust and stable:
All materials used are absolutely construction site resistant. The panels are constructed as a frame of steel profiles against which an 18mm wooden plywood plating is screwed. Inside protection by galvanization. Outside protection by galvanization and powder coating.
B. Easy and convenient:
Search time reduces and storage simplifies, due to the limited number of accessories. As a result, the assembly of the formwork on the construction site becomes extremely simple.
Types of Construx Tricon panels:

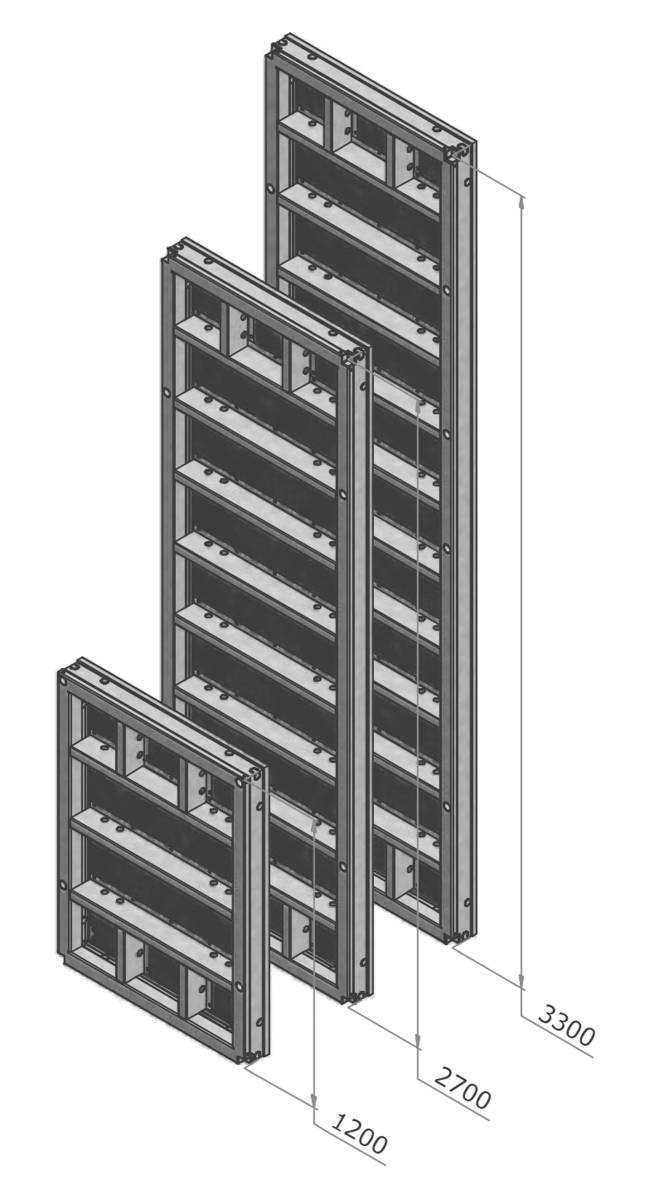

- Wall panels: 3 heights (3300mm, 2700mm and 1200mm) with 7 widths each (2400mm, 1200mm, 900mm, 720mm, 600mm, 300mm and 240mm)
- Universal panels: 1 universal panel of 720mm width per height, equipped with an extra hole pattern every 30mm. To be used for corners, wall connections, columns and as stop-end panels
- Fixed corner panels: internal corners, to make 90° angles
- Articulating corner panels: internal and external corners, to make sharp or blunt angles
- Shrinking corners: to make stair cores and lift shafts
- Bespoke dimensions possible
Application of the Construx Tricon formwork:
- Connecting the panels is done with the Tricon Clamp. Thepanels are simultaneously clamped and aligned, 2 perconnection for panels up to 2700mm
- The compensation waler with a length of 850mm hasintegrated hooks and can be used universally to alignand to reinforce joints between panels
- The 2400mm wide panels have tie holes in the center, thenarrow panels are fitted with holes on the left and right,the tie bars can be fitted through these tie holes
- The maximum permissible working load of the Ø15mmand Ø20mm tie bars complies with DIN18216
- At a wall height of 2700mm: 2 tie barsAt a wall height of 3300mm: 3 tie bars
- Unused tie holes must be closed on the concreting sidewith a plastic cap
- If there are 2 different panel widths next to each other,the ties go through the widest panel

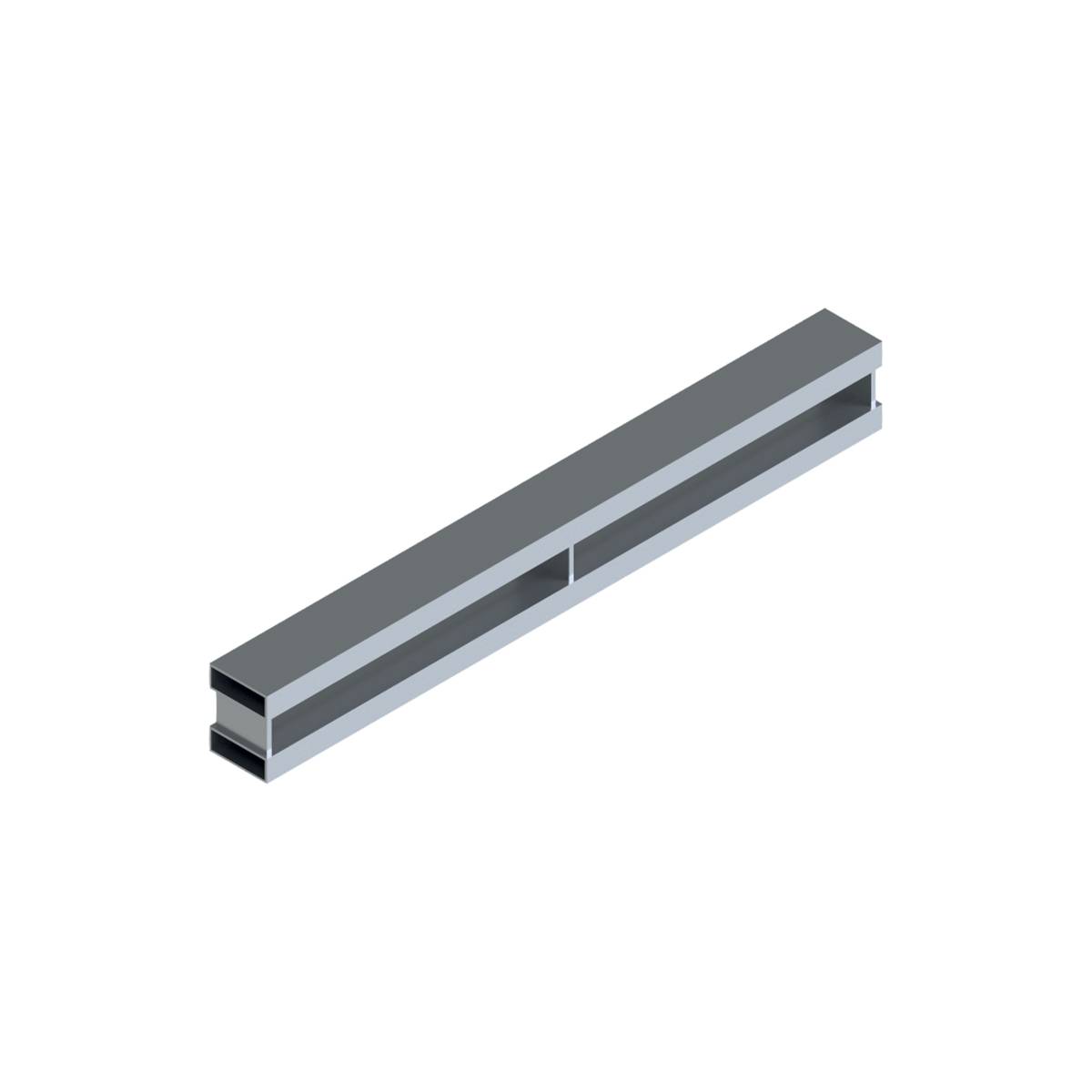

- 50mm, 60mm and 100mm infills are aluminium profiles, thestandard clamps are sufficient for alignment, the tie barsare inserted through the infills
- From 110mm to 230mm wide, infills have to be madein timber, the beams are joined to the panel with theclamp, a Tricon waler ensures the alignment, the tie bargoes through this waler
- Straight angles are made by clamping an inner corneron the inside and 2 wall panels or a wall panel and auniversal panel with a Tricon clamp on the outside
- Sharp and blunt angles are made by using articulatingcorner panels on both sides, these corners are made ofstainless steel

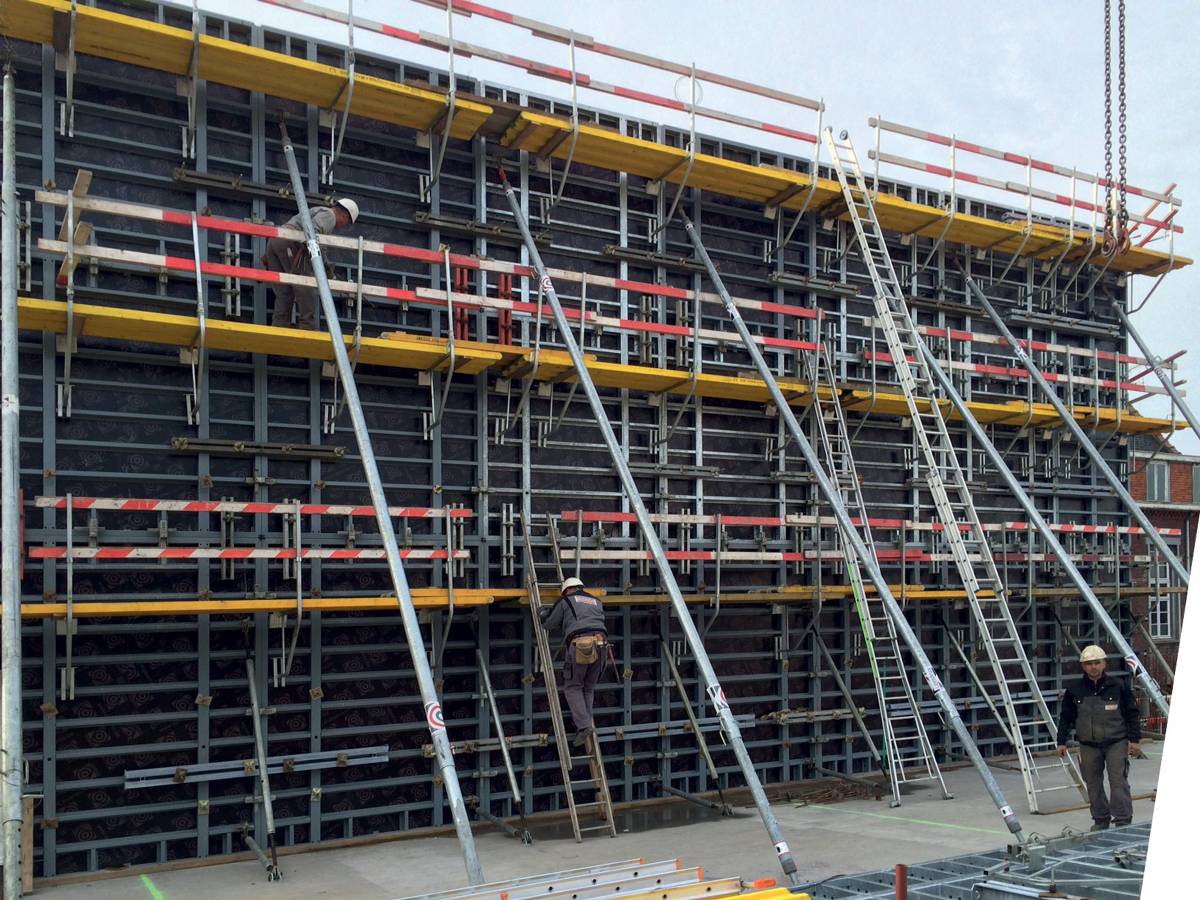

- Single-sided walls are realized by using brace frames
The Construx Tricon system is a modular shutteringsystem with a limited number of accessories:
- Scaffold bracket

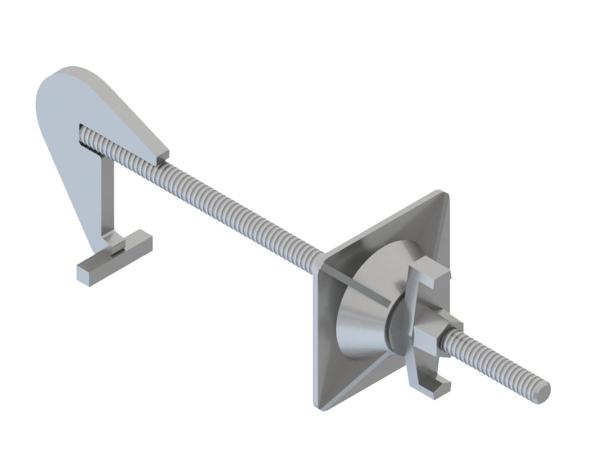

- Stop-end tie with wingnut
- Waler 850
- Top tie bracket
- Push-pull prop
- Foundation clamp
- Tie bar with wingnut
- Base plate
- Lifting hook
- Clamp
- Compensation waler 850
- Brace connector
- Hook tie with wingnut
