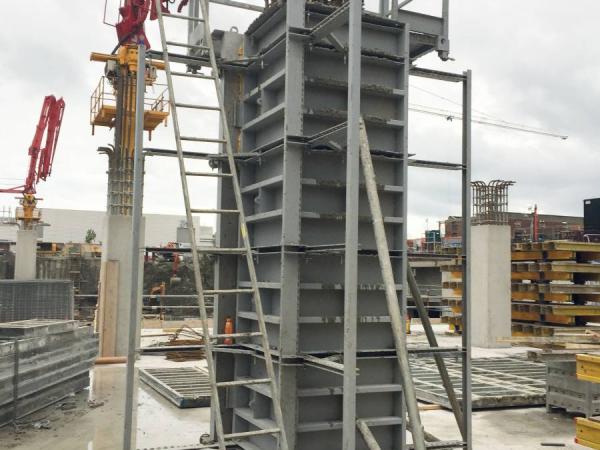

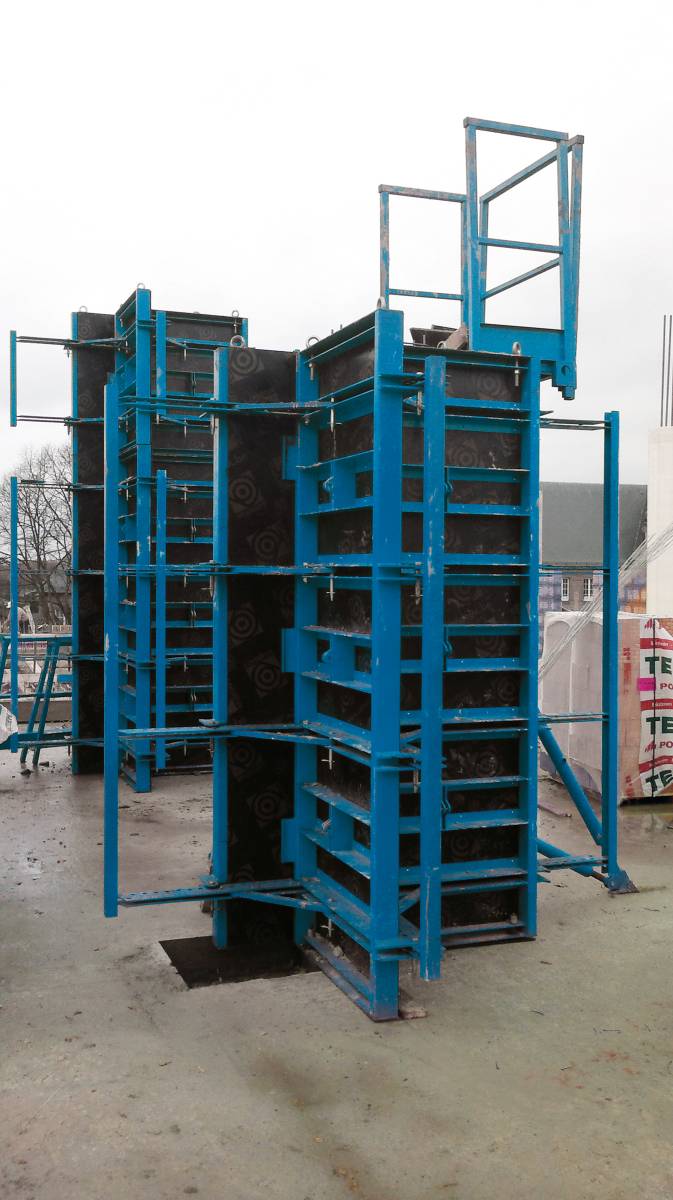

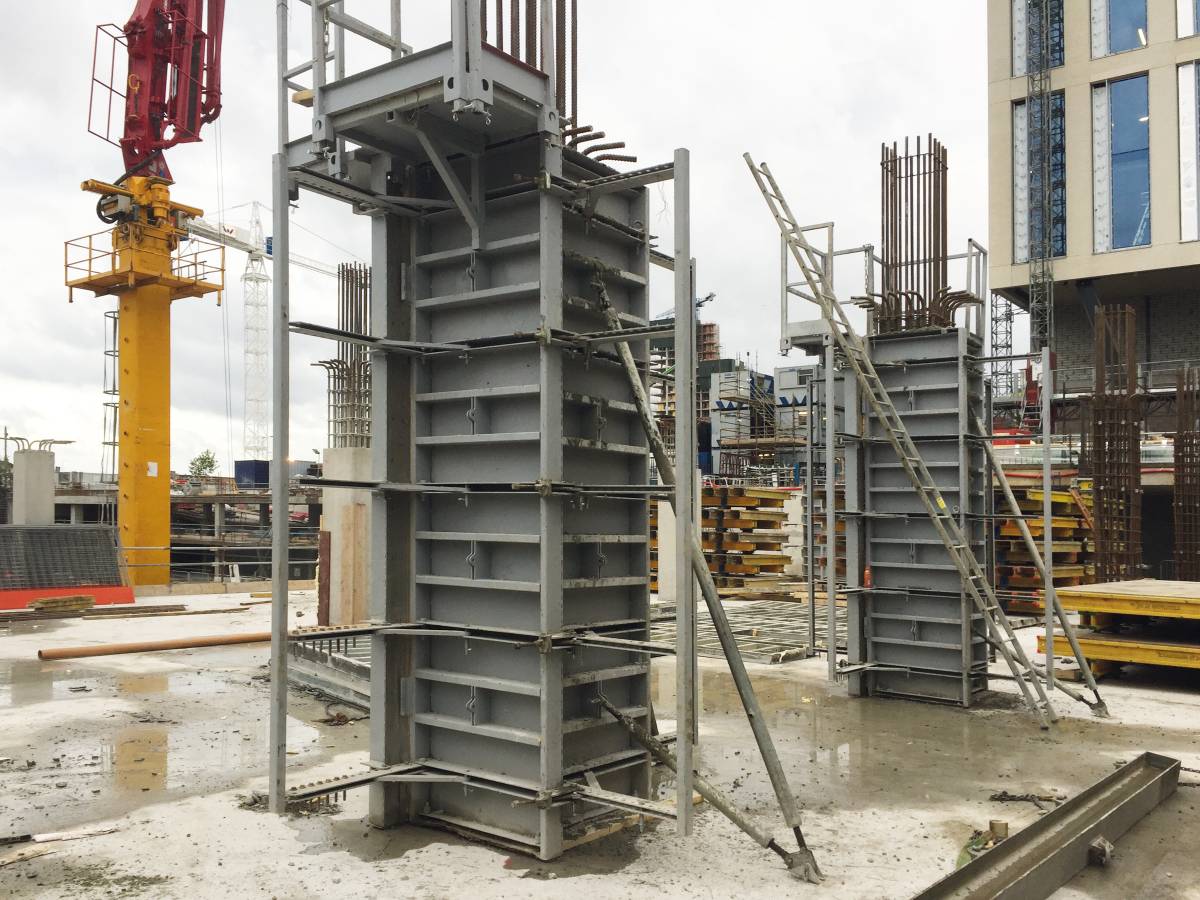

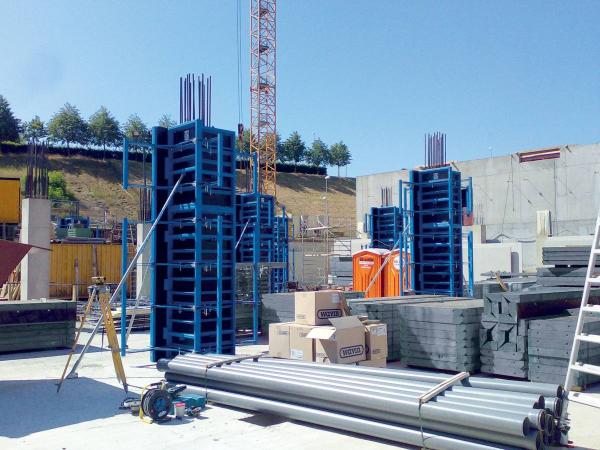

Quadri adjustable column formwork
The Construx Quadri column formwork is a multifunctional hit-and-miss system for rectangular columns.
Composition of the Quadri panels:
- Galvanized and/or painted frame
- 18mm plywood with a 220g/m² phenol coating, or stainless steel sheeting
- Plywood screwed from behind
Advantages of the Quadri system:
- Rigid, solid, easy and ergonomic
- Designed and calculated according to applicable standards
- In-house production, controlled and certified
- Bespoke panels with stainless steel sheeting
The Construx Quadri adjustable column box has 5 important benefits:
- Fair-faced finish:
- No ties through the concrete
- Plywood screwed from behind
- Handy:
- With the same set, column boxes can be prepared with sections from 150mm x 150mm up to 850mm x 850mm
- Adjustable with 50mm increments
- The heights are similar to those of the standard Tricon panels: 1200mm, 2700mm and 3300mm
- Different column boxes can be assembled on top of each other
- Fast:
- All accessories are integrated in the formwork
- A set of 4 panels can be moved on-site in one single crane lift
- Stacked on a truck, a complete set takes very little space
- Strong and sustainable:
- Pressure resistance of more than 80kN/m²
- Minimum deflection
- Long life expectancy
- Made to measure possibilities:
- Larger sections
- Other heights
- Stainless steel sheeting
