Application of Magnets and Side-Forms
CW Rod Box Magnets 2000kg and accessories
MagCW-2000-Rod
- Box Magnet
- With 2 welded rods for fixing brackets
- CWS-A-B2
- With 2 threaded holes M16
- Cathodic dip painted black RAL 9005
| Product code | Pull-off force | Dimensions |
|---|---|---|
| CWS-M-B2R | 2000kg | 320mm x 120mmx 60mm |

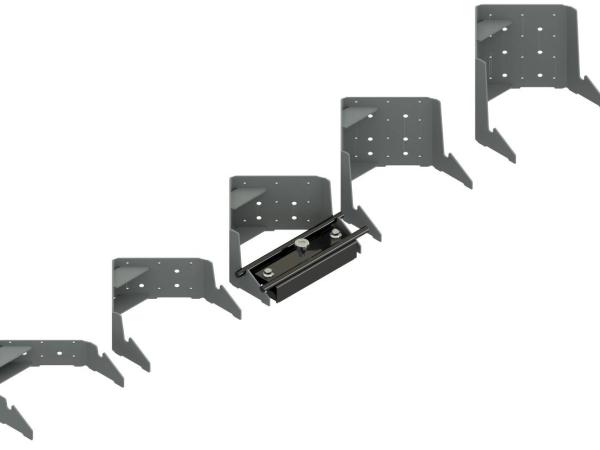

Rod S-Bracket
- Straight bracket for Box Magnets MagCW-2000
- Adapter to fix plywood side-forms
- Available in different heights
- Cathodic dip painted black RAL 9005
| Product code | Available heights |
|---|---|
| CWS-A-B2S90 | 90mm |
| CWS-A-B2S140 | 140mm |
| CWS-A-B2S190 | 190mm |
| CWS-A-B2S240 | 240mm |
| CWS-A-B2S290 | 290mm |
Rod C-Bracket
- Corner bracket for Box Magnets MagCW-2000
- Adapter to fix plywood side-forms
- Available in different heights
- Cathodic dip painted black RAL 9005
| Product code | Available heights |
|---|---|
| CWS-A-B2C90 | 90mm |
| CWS-A-B2C140 | 140mm |
| CWS-A-B2C190 | 190mm |
| CWS-A-B2C240 | 240mm |
| CWS-A-B2C290 | 290mm |

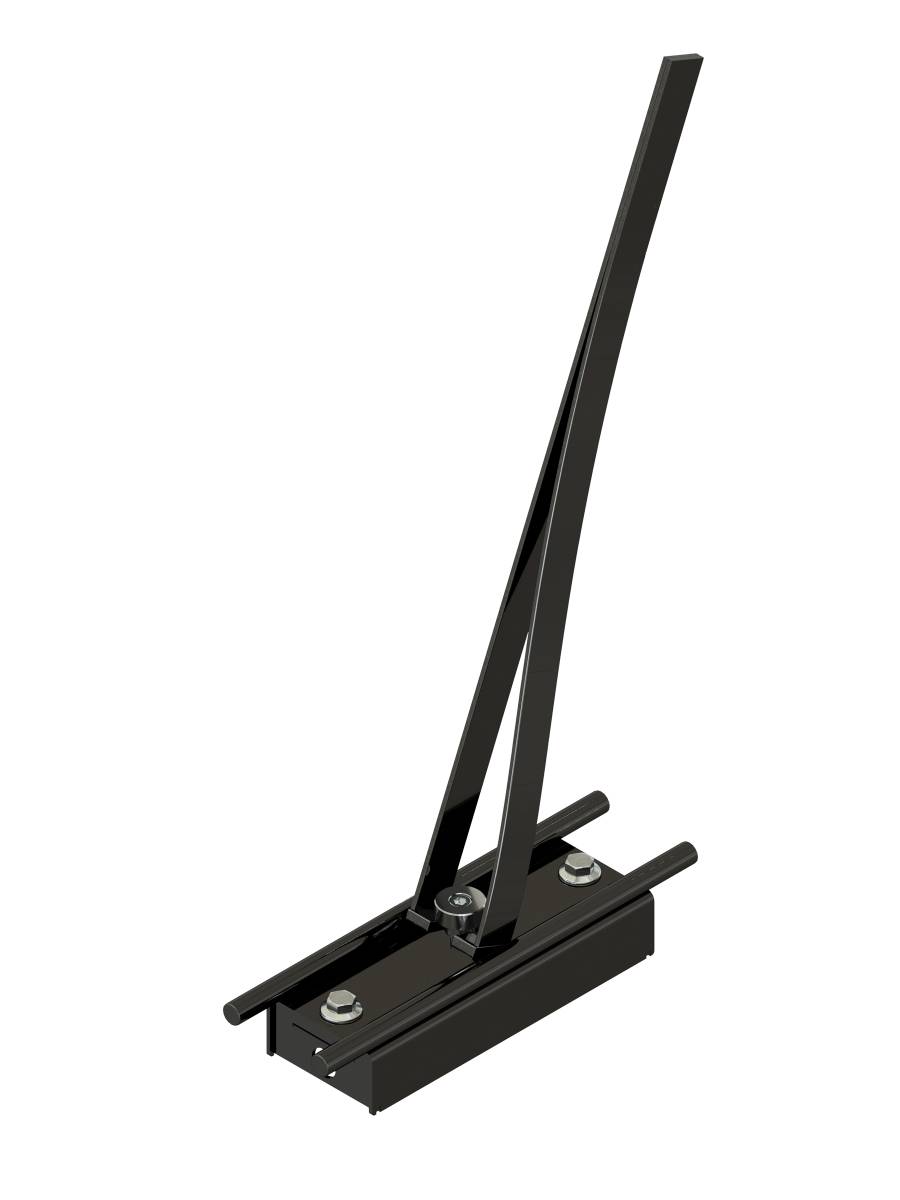

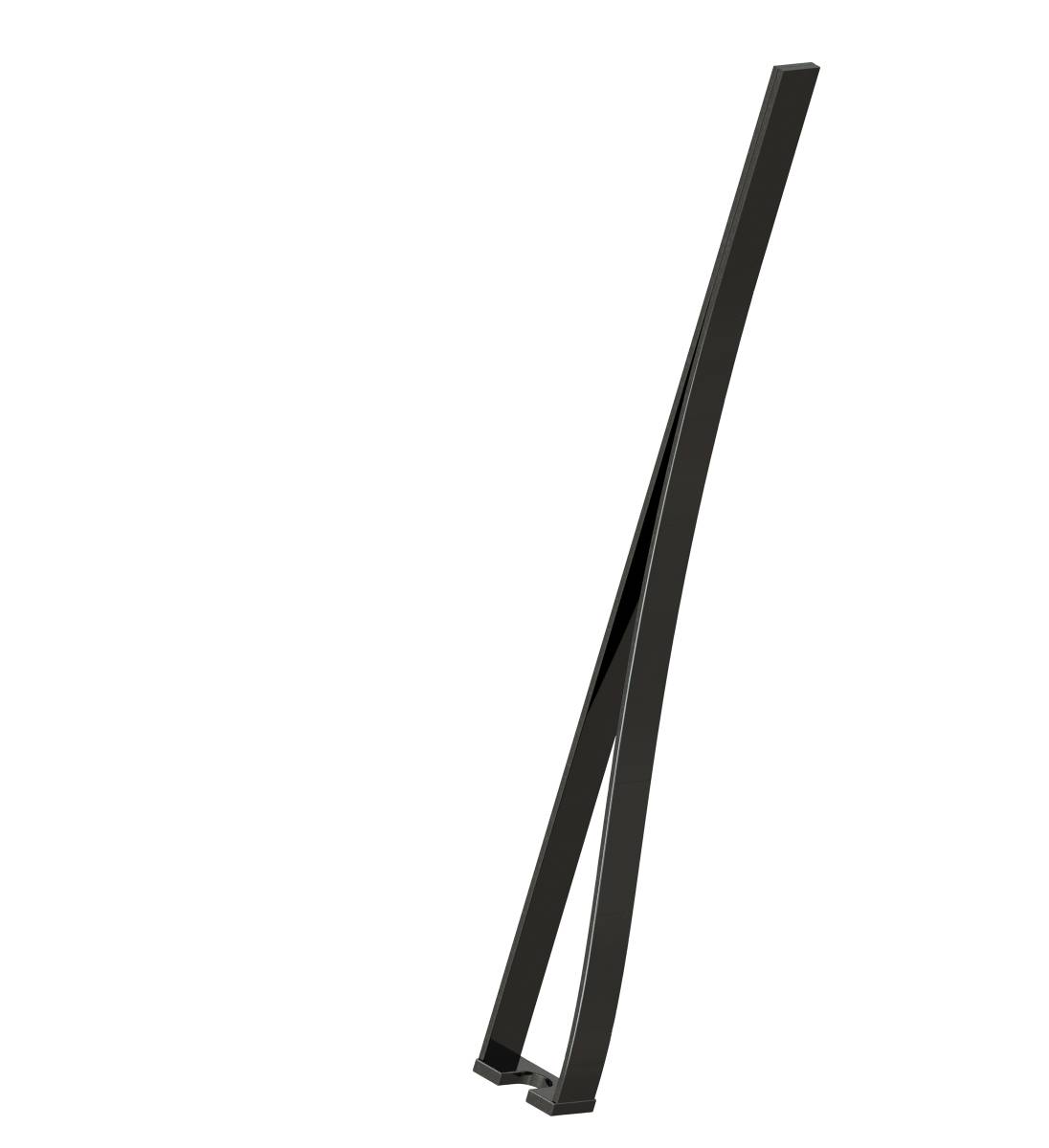

Release Tool
- Release handle Box Magnets MagCW
- Spray painted black RAL 9011
- Product code: CWS-A-RT
Rack for Magnets (A)
- Rack for 34 Box Magnets
- CWS-M-B2, without wheels
- Product code: CWS-A-RB2.34
Rack for Magnets (B)
- Rack for 22 Box Magnets
- CWS-M-B2, with wheels
- Spray painted grey RAL 7001
- Product code: CWS-A-RB2.22W
